My Mcp Server Example
Description
### Remote MCP Server on Cloudflare Let's get a remote MCP server up-and-running on Cloudflare Workers complete with OAuth login! ## Develop locally ```bash # clone the repository git clone git@github.com:cloudflare/ai.git # install dependencies cd ai npm install # run locally…
About
### Remote MCP Server on Cloudflare Let's get a remote MCP server up-and-running on Cloudflare Workers complete with OAuth login! ## Develop locally ```bash # clone the repository git clone git@github.com:cloudflare/ai.git # install dependencies cd ai npm install # run locally npx nx dev remote-mcp-server ``` You…
Details
- Author
- Franco-yvr
- Downloads
- 129
- Categories
- Other
Jump to
- Deploys on Cloudflare Workers with OAuth login
- Uses SSE transport for remote MCP connections
- Works with MCP Inspector and Claude Desktop
- Requires a local proxy for Claude Desktop integration
- Supports local development and remote deployment
Setting up with Highlight
This MCP is not yet compatible with Highlight’s one-click setup. However, you can still use it with Highlight by following these steps:
- Download and install Highlight from highlightai.com/download
- Navigate to the plugins tab and select "Add Custom Plugin"
-
Configure the plugin with the settings below
Plugin Name
My Mcp Server ExampleCommand (node, npx, python, etc.)Please refer to the README for specific instructions on how to obtain API keys or other required environment variables.
- Enable "Start Automatically" if you want the plugin to start when Highlight launches
From the repository
Clone the repository, install dependencies with npm install, and run locally with npx nx dev remote-mcp-server. Connect clients by pointing them to the server's SSE endpoint (e.g., http://localhost:8787/sse locally or the workers.dev URL after deployment). Claude Desktop requires a local proxy using npx mcp-remote configured in its settings file.
Claude Desktop / Cursor
Paste into your MCP client config file to install this server.
{
"mcpServers": {
"my mcp server example": {
"my-mcp-server-example": {
"command": "npx",
"args": [
"nx",
"dev",
"remote-mcp-server"
]
}
}
}
}McpServers
{
"my-mcp-server-example": {
"command": "npx",
"args": [
"nx",
"dev",
"remote-mcp-server"
]
}
}Remote MCP Server on Cloudflare
Let's get a remote MCP server up-and-running on Cloudflare Workers complete with OAuth login!
Develop locally
# clone the repository
git clone git@github.com:cloudflare/ai.git
install dependencies
cd ai
npm install
run locally
npx nx dev remote-mcp-server
You should be able to open http://localhost:8787/ in your browser
Connect the MCP inspector to your server
To explore your new MCP api, you can use the MCP Inspector.
- Start it with npx @modelcontextprotocol/inspector

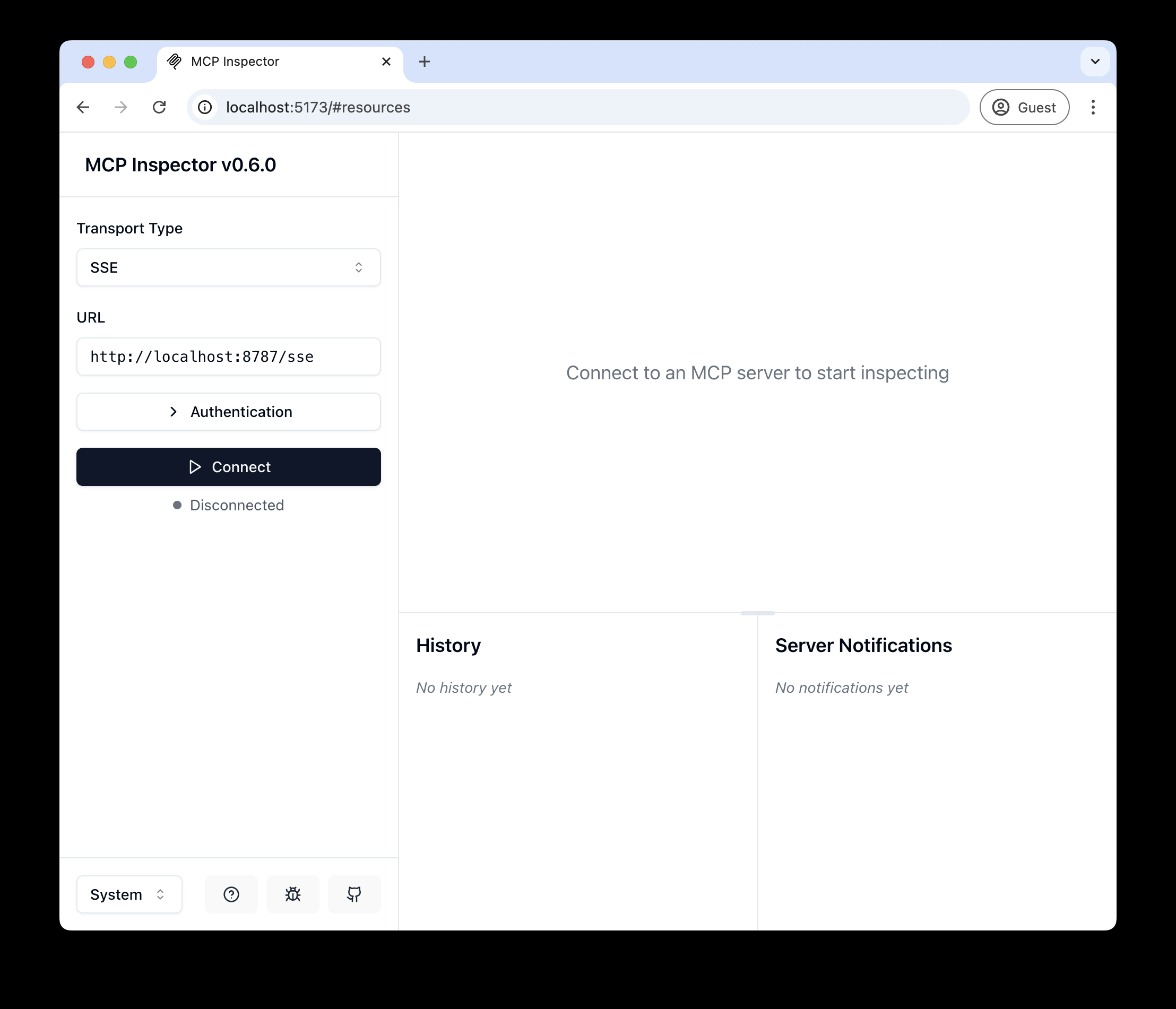

- Within the inspector, switch the Transport Type to SSE and enter http://localhost:8787/sse as the URL of the MCP server to connect to, and click "Connect"
- You will navigate to a (mock) user/password login screen. Input any email and pass to login.

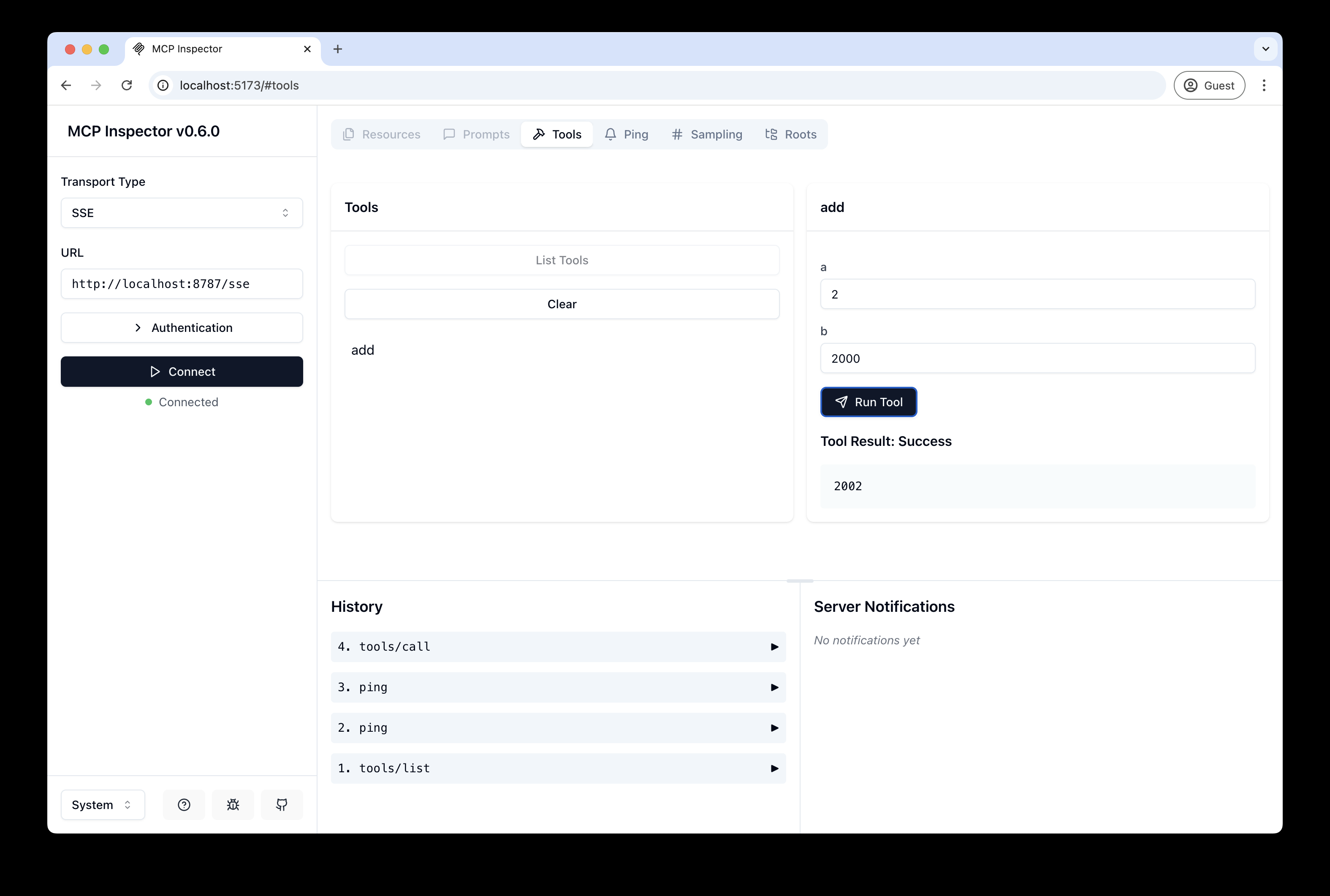

- You should be redirected back to the MCP Inspector and you can now list and call any defined tools!
<div align="center">
</div>
<div align="center">
</div>
Connect Claude Desktop to your local MCP server
The MCP inspector is great, but we really want to connect this to Claude! Follow Anthropic's Quickstart and within Claude Desktop go to Settings > Developer > Edit Config to find your configuration file.
Open the file in your text editor and replace it with this configuration:
{
"mcpServers": {
"math": {
"command": "npx",
"args": [
"mcp-remote",
"http://localhost:8787/sse"
]
}
}
}
This will run a local proxy and let Claude talk to your MCP server over HTTP

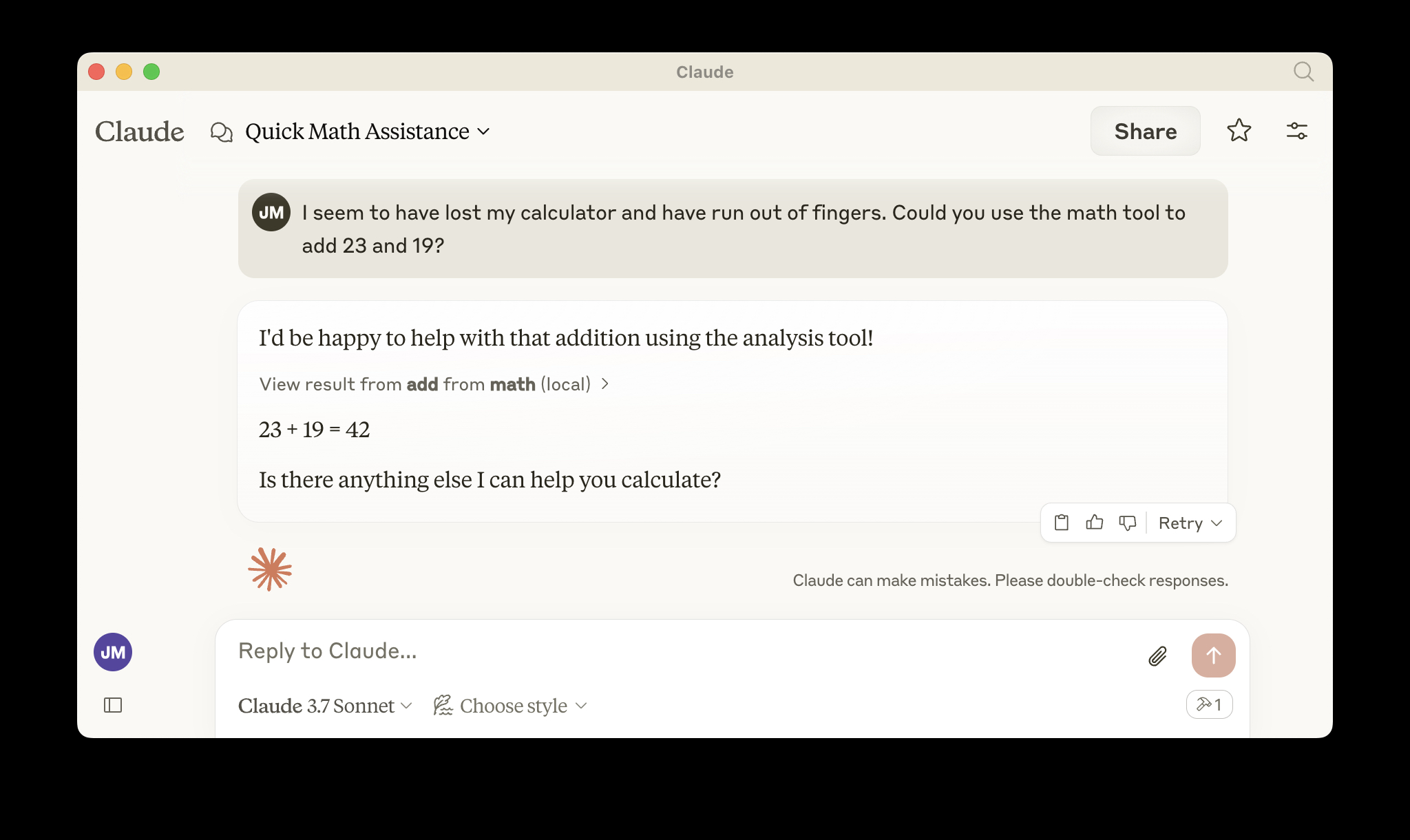

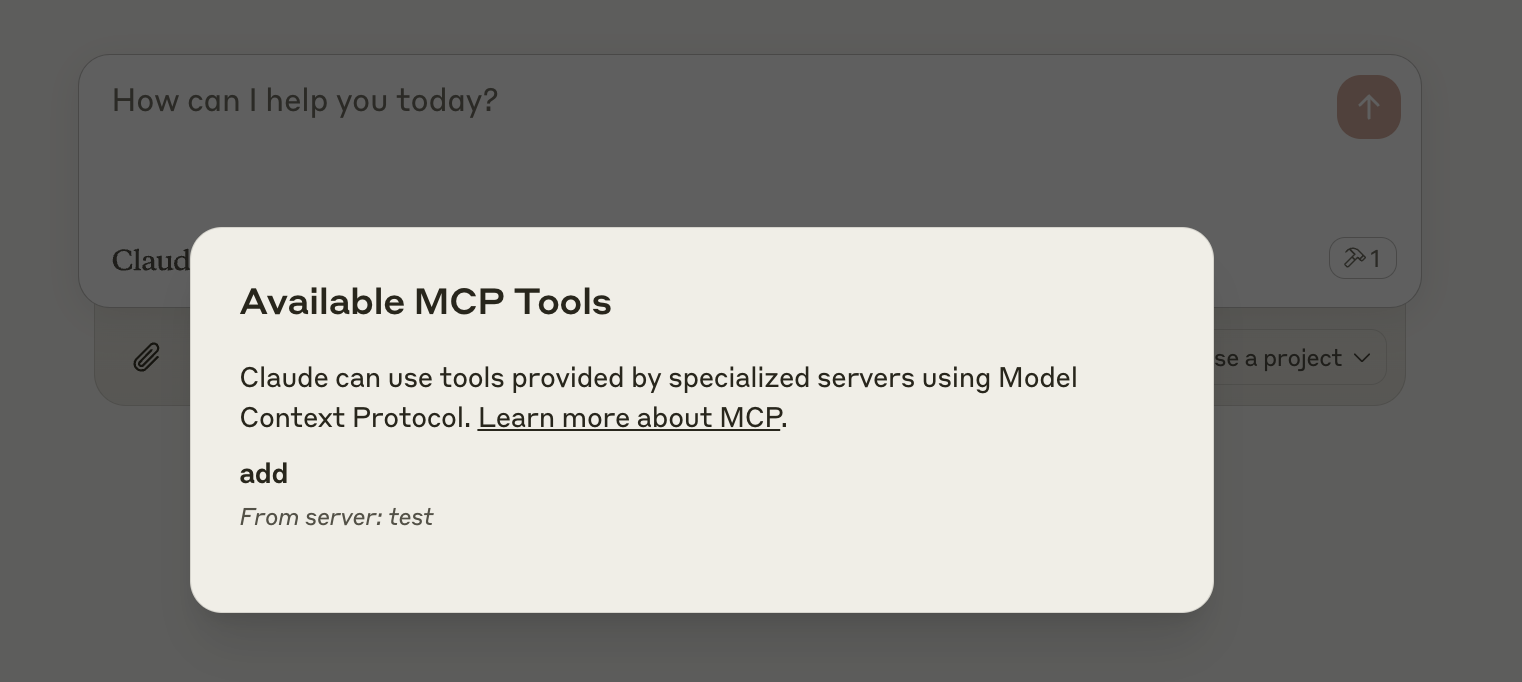

When you open Claude a browser window should open and allow you to login. You should see the tools available in the bottom right. Given the right prompt Claude should ask to call the tool.
<div align="center">
</div>
<div align="center">
</div>
Deploy to Cloudflare
1. npx wrangler kv namespace create OAUTH_KV
2. Follow the guidance to add the kv namespace ID to wrangler.jsonc
3. npm run deploy
Call your newly deployed remote MCP server from a remote MCP client
Just like you did above in "Develop locally", run the MCP inspector:
npx @modelcontextprotocol/inspector@latest
Then enter the workers.dev URL (ex: worker-name.account-name.workers.dev/sse) of your Worker in the inspector as the URL of the MCP server to connect to, and click "Connect".
You've now connected to your MCP server from a remote MCP client.
Connect Claude Desktop to your remote MCP server
Update the Claude configuration file to point to your workers.dev URL (ex: worker-name.account-name.workers.dev/sse) and restart Claude
{
"mcpServers": {
"math": {
"command": "npx",
"args": [
"mcp-remote",
"https://worker-name.account-name.workers.dev/sse"
]
}
}
}
Debugging
Should anything go wrong it can be helpful to restart Claude, or to try connecting directly to your
MCP server on the command line with the following command.
npx mcp-remote http://localhost:8787/sse
In some rare cases it may help to clear the files added to ~/.mcp-auth
rm -rf ~/.mcp-auth
