TOON Tools for VS Code

> Token-Oriented Object Notation support: syntax highlighting, formatting, linting,
> intelligent editing, previews, table viewer, and dual-marketplace publishing.

TOON Tools turns .toon files into a first-class VS Code editing experience for compact
tabular data. It supports authoring, diagnostics, JSON conversion, data inspection, size analysis,
and CSV export without leaving the editor.

Features

| Feature | Description |
| --------------------- | ------------------------------------------------------------------------------------------------------------- |
| Syntax highlighting | TextMate grammar for block names, row counts, fields, comments, quoted strings, empty values, and separators. |
| Formatter | Normalizes headers, row indentation, comma spacing, and trailing whitespace. |
| Linter | Reports row-count mismatches, duplicate fields, and rows with the wrong number of values. |
| Hover | Shows block metadata on headers and field names on data-row cells. |
| Inlay hints | Displays field-name hints before row values, controlled by toon.inlayHints.enabled. |
| Rename and definition | Rename block or field names from headers, and jump from rows back to the block header. |
| JSON conversion | Convert JSON arrays or objects of arrays to TOON, and convert TOON back to JSON. |
| Table Viewer | Inspect blocks as sortable, filterable tables in a VS Code-themed webview. |
| Size Analyzer | Compare TOON and JSON byte counts, line counts, and token estimates. |
| CSV export | Export any TOON block to a CSV file from the command palette or context menu. |

Preview

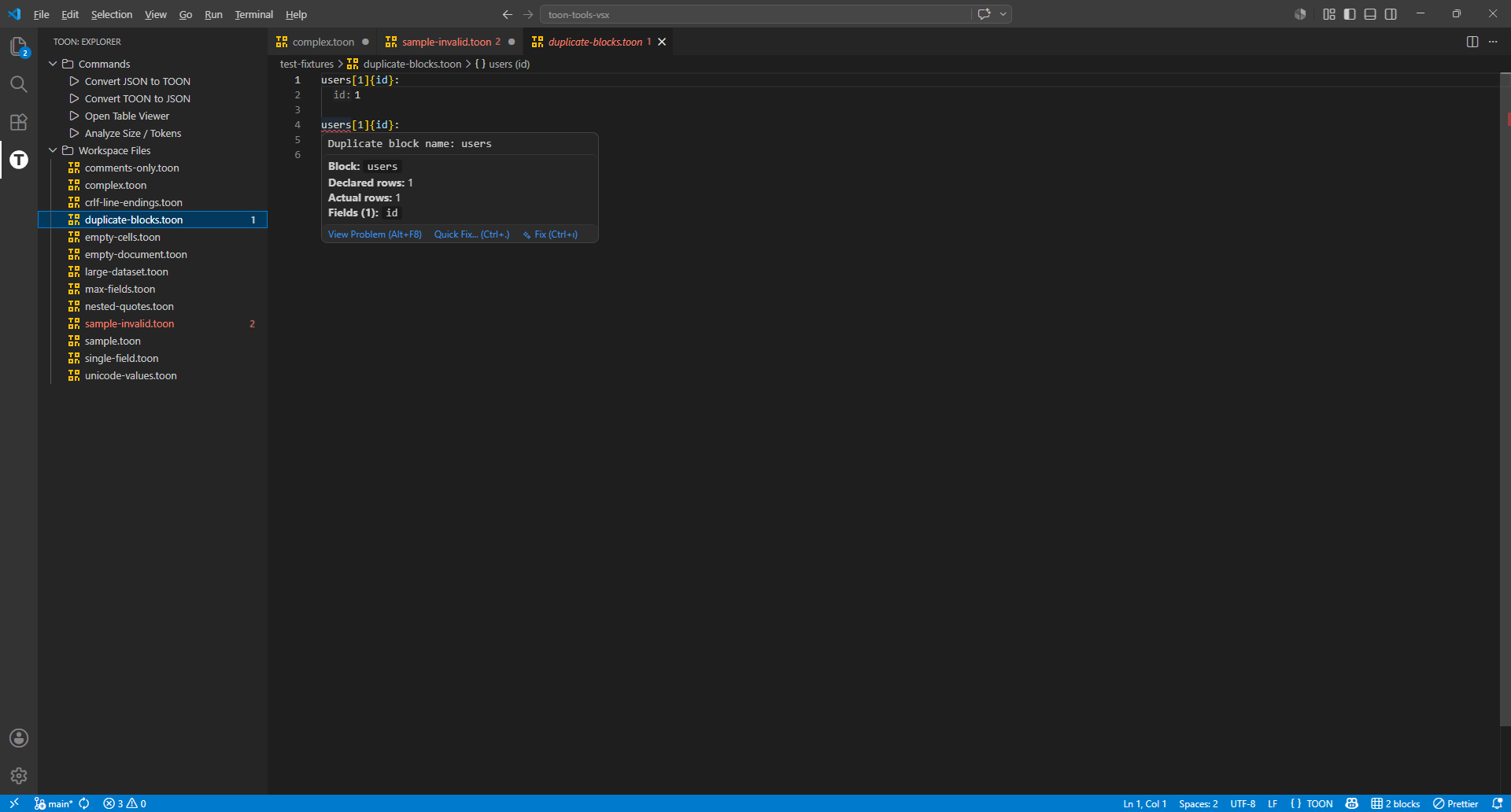

Syntax Highlighting & Diagnostics

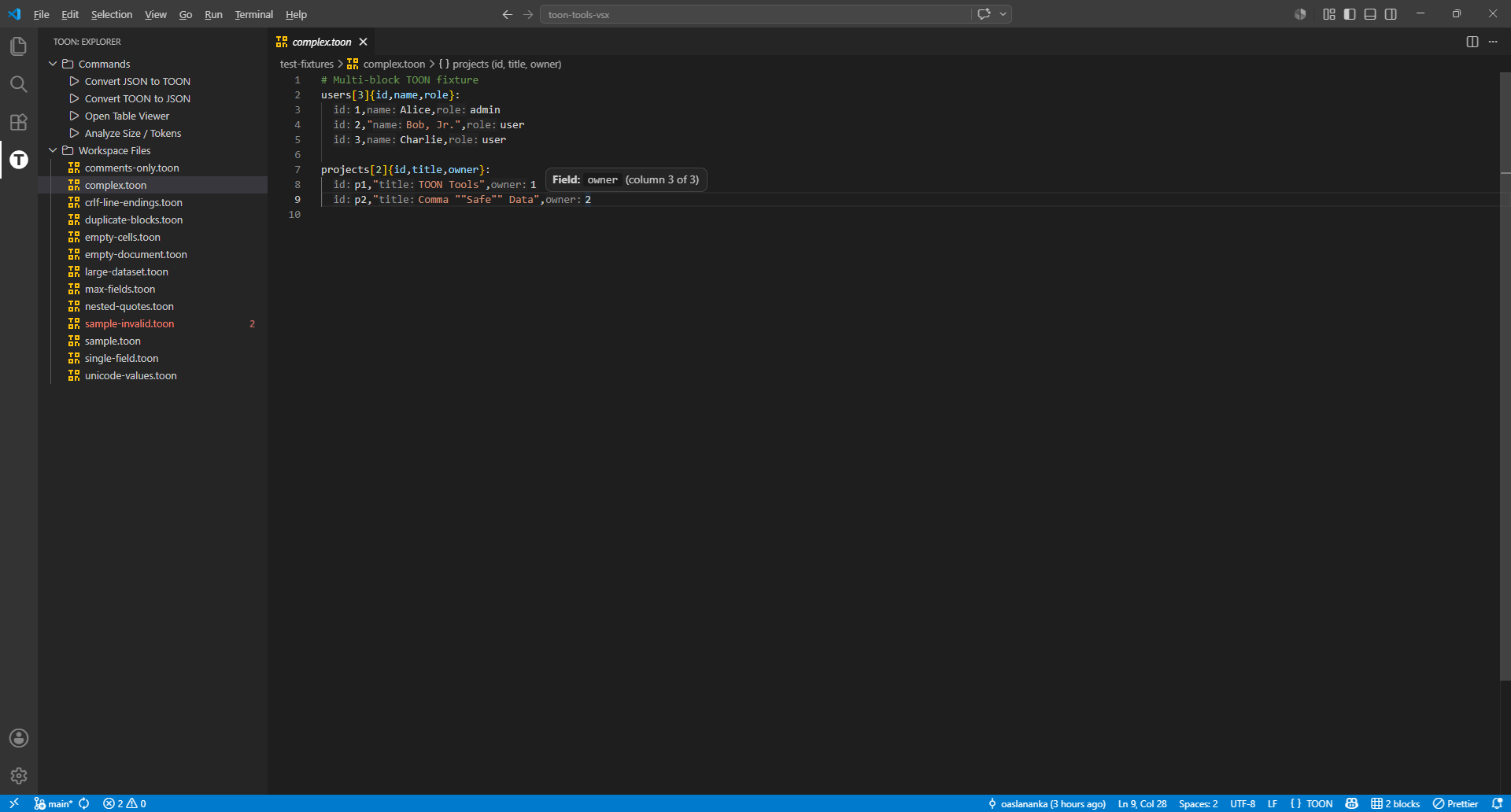

Inlay Hints

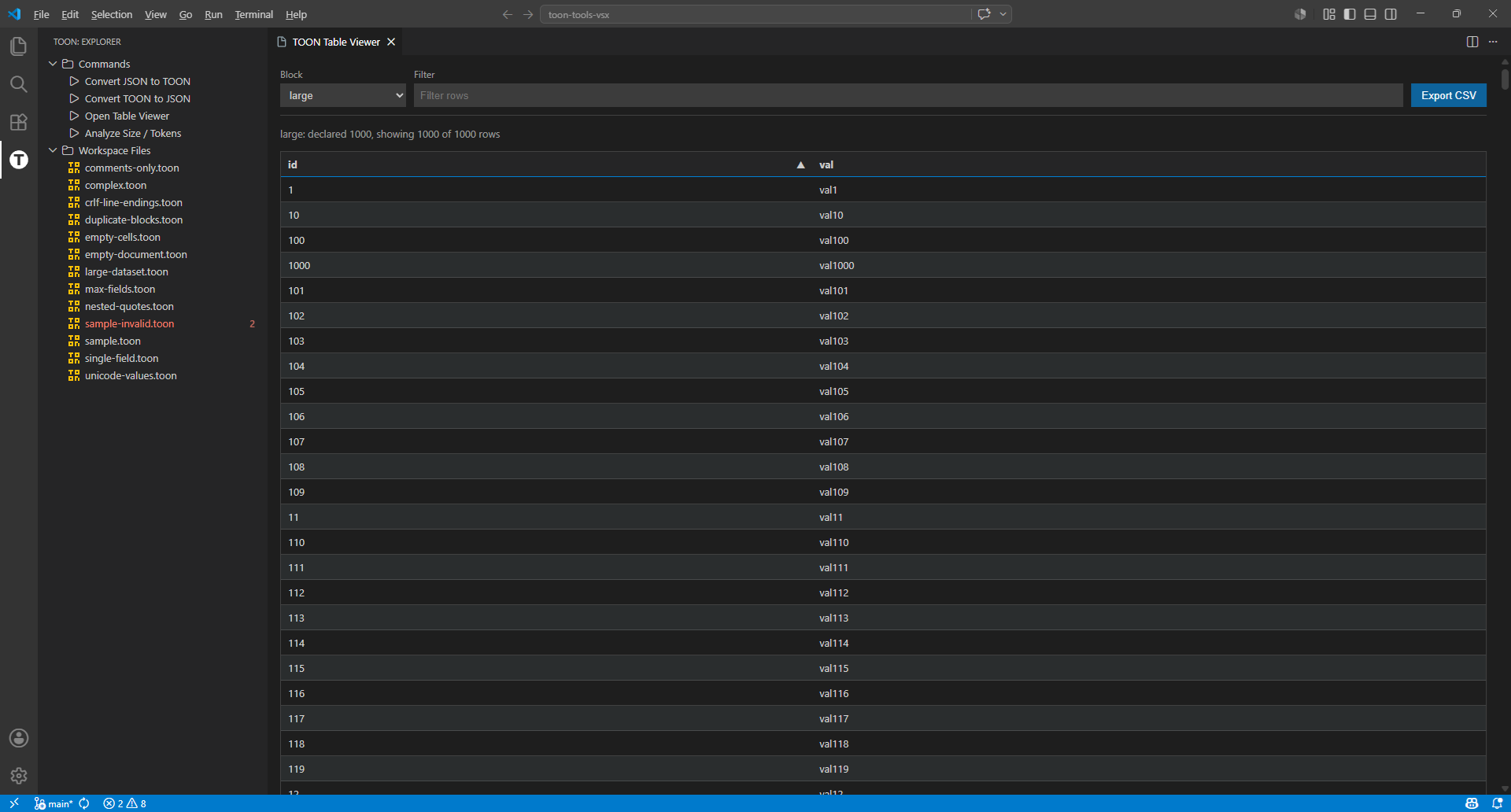

Table Viewer

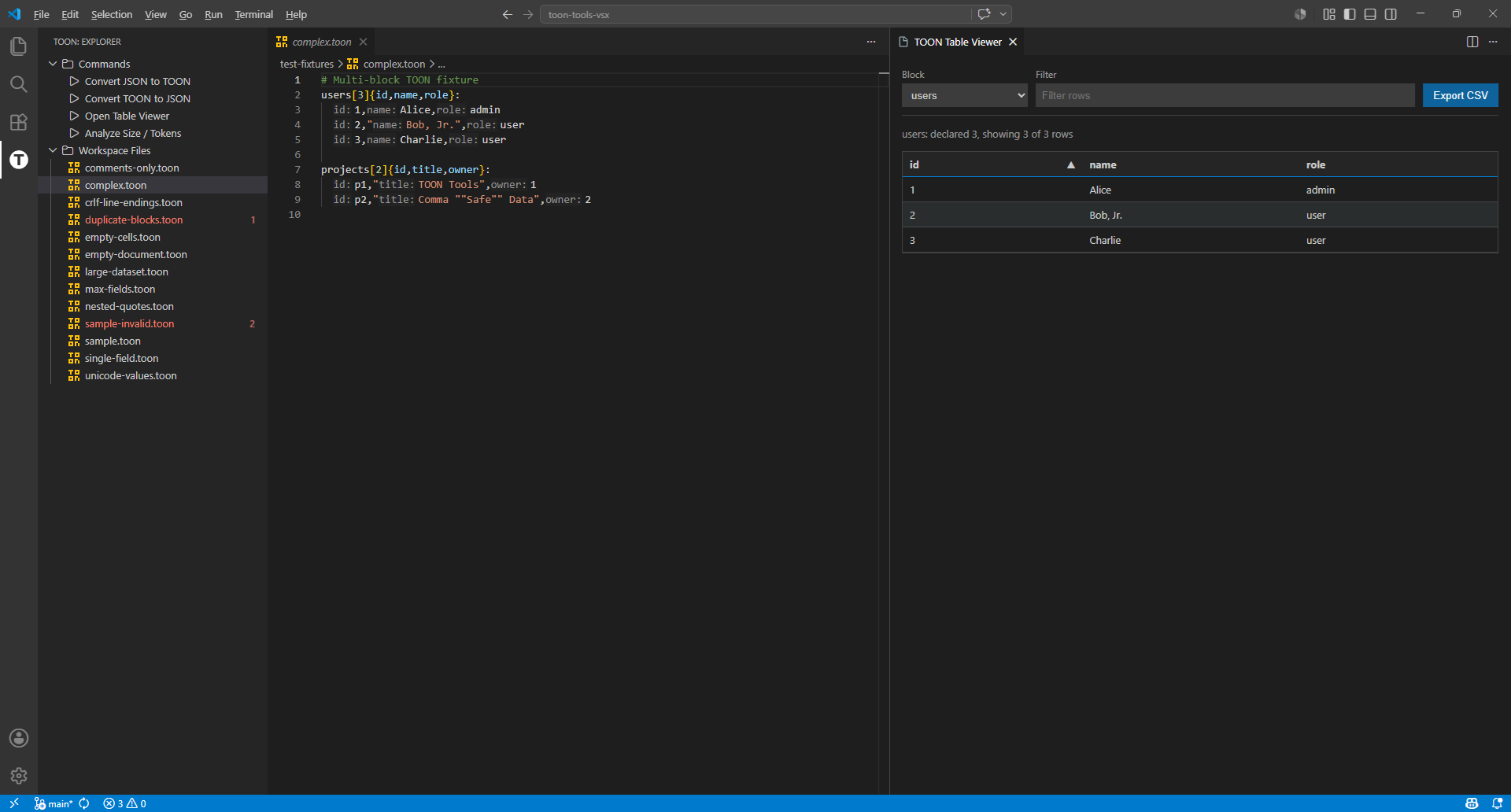

Editor and Table Preview

Install

Install from the VS Code Marketplace
or Open VSX. To install a local
VSIX build, run:

pnpm run package
code --install-extension ./toon-tools-vsx-<version>.vsix

Usage

Open a .toon file to enable syntax highlighting, diagnostics, hover, inlay hints, formatting, and
navigation. Use the command palette for conversion, preview, table inspection, token-size analysis,
and CSV export commands.

TOON Format Specification

TOON stores tabular records as named blocks:

users[3]{id,name,role}:
  1,Alice,admin
  2,Bob,user
  3,Charlie,user

Header syntax:

BlockName[rowCount]{field1,field2,...}:

Rows are indented comma-separated values. Empty values are allowed. Double-quoted values may contain
commas, and embedded quotes are escaped by doubling them:

users[2]{id,name,note}:
  1,"Bob, Jr.","Says ""hello"""
  2,Alice,

Comments start with # when the line begins with optional whitespace. See
docs/toon-spec.md for the complete grammar and examples.

Configuration

| Setting | Default | Description |
| --------------------------------- | --------- | --------------------------------------------------------------- |
| toon.linter.enabled | true | Enable real-time TOON linting. |
| toon.linter.debounceMs | 300 | Debounce delay in milliseconds for linting on document changes. |
| toon.formatter.indentWidth | 2 | Number of spaces for row indentation. Allowed values: 2, 4. |
| toon.formatter.fieldSpacing | compact | Header field separator style: compact or spaced. |
| toon.conversion.toJsonValueMode | strings | TOON-to-JSON value mode: strings or typed. |
| toon.inlayHints.enabled | true | Show field-name inlay hints in data rows. |
| toon.statusBar.enabled | true | Show the current TOON block count in the VS Code status bar. |

.toonrc files are validated against schemas/toon-config.schema.json.

Commands

| Command | Description | Default shortcut |
| -------------------------------- | ------------------------------------------------------------------ | ---------------- |
| TOON: Convert JSON to TOON | Convert the active JSON document or selection into a TOON preview. | None |
| TOON: Convert TOON to JSON | Convert the active TOON document or selection into formatted JSON. | None |
| TOON: Open JSON Preview (side) | Open a side-by-side JSON preview for the active TOON document. | None |
| TOON: Open TOON Preview (side) | Open a side-by-side TOON preview for the active JSON document. | None |
| TOON: Open Table Viewer | Open the active TOON document in a sortable table viewer. | None |
| TOON: Analyze Size / Tokens | Compare TOON and JSON byte counts and token estimates. | None |
| TOON: Export Block as CSV | Export a selected TOON block to CSV. | None |

Extension Development

git clone https://github.com/oaslananka/toon-tools-vsx.git
cd toon-tools-vsx
corepack enable
pnpm install --frozen-lockfile
pnpm run build

Launch the extension with F5 and the Launch TOON Extension configuration.

Useful local gates:

pnpm run format:check
pnpm run lint
pnpm run typecheck
pnpm run test:unit:coverage
pnpm run build
pnpm run package

Automation and scheduled repository checks are documented in
docs/automation.md.

Workspace Trust and Security

TOON Tools declares limited untrusted-workspace support. Linting, formatting, syntax highlighting,
hover, and inlay hints work in untrusted workspaces. The extension metadata marks conversion
commands as trust-sensitive because they read document content and can create derived documents.
Preview, table-viewer, size analysis, and CSV export commands also process active document content
and can create webviews or files; use them only for workspace content you trust.

Webviews use VS Code theme variables, localResourceRoots, a restrictive Content-Security-Policy,
and nonces generated with Node crypto.

Known Limitations

This extension implements a strict TOON table-block subset. Quoted row values support commas and
escaped double quotes. TOON-to-JSON conversion keeps values as strings by default; opt into typed
primitive inference with toon.conversion.toJsonValueMode. JSON-to-TOON conversion expects arrays
of objects or objects containing arrays of objects, and object keys must be valid TOON block and
field names.

Support

Open bugs, feature requests, and security-adjacent hardening requests in
GitHub Issues. For private vulnerability
reports, use GitHub private vulnerability reporting or a private security advisory.

Contributing

See docs/contributing.md.

License

MIT. See LICENSE.
