RhinoMCP

Control Rhino 3D and Grasshopper with AI, in plain language.

RhinoMCP connects Rhino to AI agents through the Model Context Protocol,
so assistants like Claude and Cursor can model geometry, read your document, and build
Grasshopper definitions for you, just by chatting.

Quick start · What it can do · Usage · Examples · Tool reference

English · 简体中文

</div>

---

Highlights

- Describe what you want and the assistant builds it in Rhino.
- It reads your document and can capture the viewport, so it works from what is actually on screen.
- It scripts Grasshopper for you: finding components, wiring them, setting sliders, and solving.
- A single plugin and a single config entry cover both Rhino and Grasshopper.
- When you need more control, it can run native Rhino commands, RhinoScript-Python, or RhinoCommon C#.

> [!NOTE]
> RhinoMCP targets Rhino 8 on Windows and macOS.

Demos

<table>
<tr>
<td width="50%" align="center">

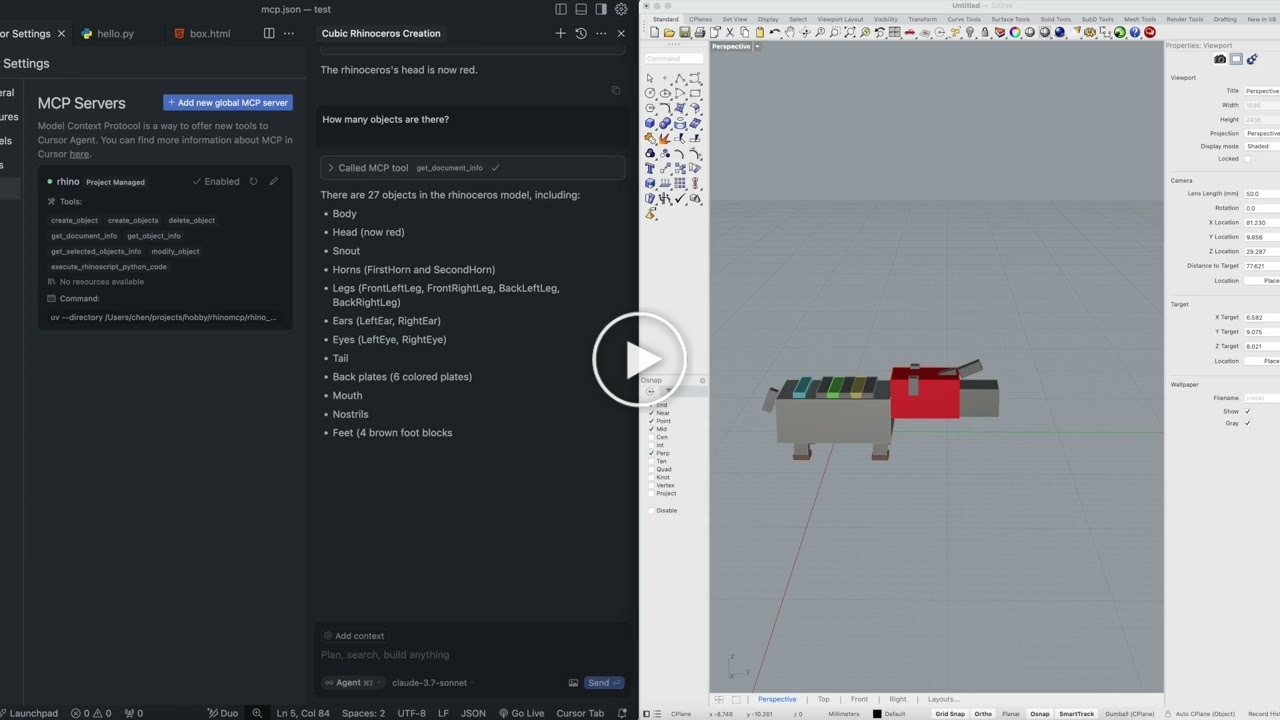

Two-way interaction: the AI both creates and reads geometry.

</td>
<td width="50%" align="center">

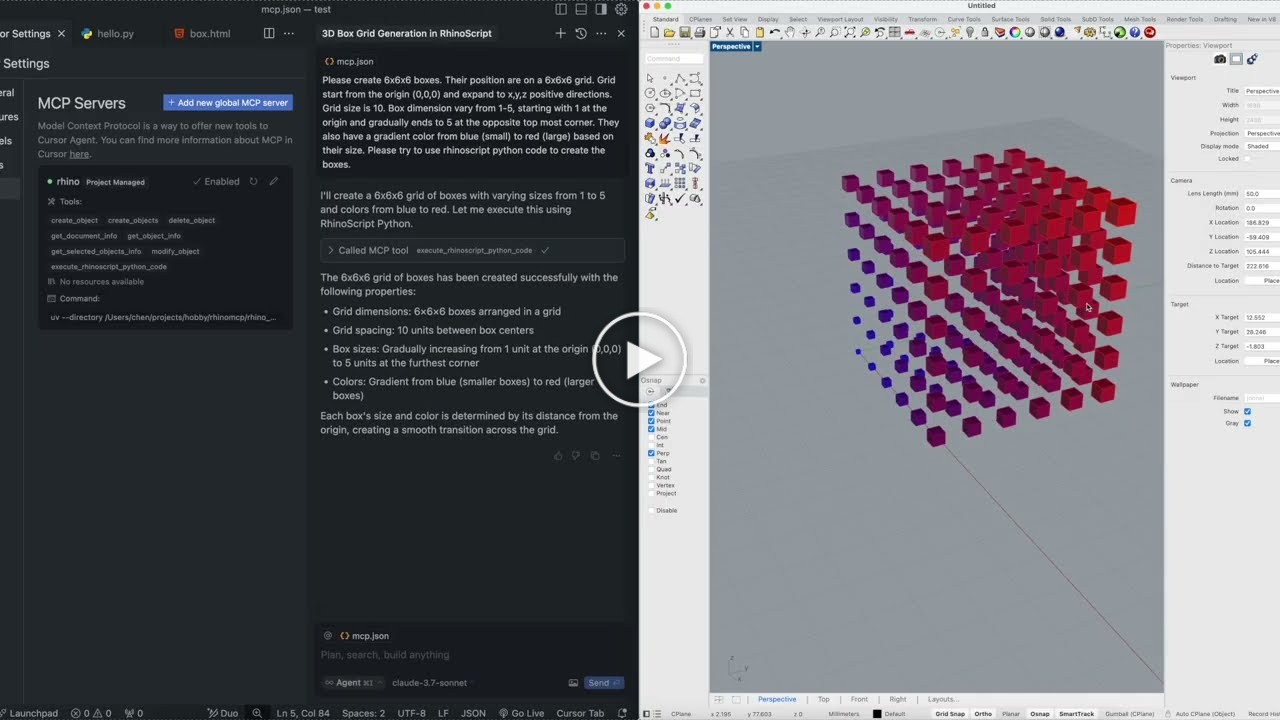

Custom scripts: the AI writes and runs scripts inside Rhino.

</td>
</tr>
</table>

Prefer a walkthrough? Nate made a showcase and install tutorial on YouTube.

What it can do

Rhino

| Area | What the AI can do |
| ------------------- | -------------------------------------------------------------------------------------------------------------------------------------- |
| Create geometry | Points, lines, polylines, circles, arcs, ellipses, curves, boxes, spheres, cones, cylinders, and surfaces, one at a time or in batches |
| Transform & edit | Move, rotate, scale, recolor, rename, and delete objects |
| Advanced modeling | Loft, extrude, sweep, offset, pipe; boolean union, difference, and intersection |
| Curve operations | Project, intersect, and split curves |
| Layers & attributes | Create, delete, and switch layers; read and write object attributes |
| Inspect & select | Document summaries, object info, and filtered selection (by name, color, or category, with AND / OR logic) |
| See the model | Capture the viewport so the AI gets visual feedback |
| Analyze | Measure length, area, volume, bounding boxes, and more |
| Go deeper | Run any Rhino command, execute RhinoScript-Python, or run RhinoCommon C#, with built-in RhinoScript docs lookup |

Grasshopper

| Area | What the AI can do |
| ----------------- | ----------------------------------------------------------------------------------------------------- |
| Find components | Search the installed component library and inspect a component's inputs and outputs before placing it |
| Build canvases | Add, position, lay out, update, and delete components |
| Wire it up | Connect and disconnect parameters between components |
| Set & read values | Drive sliders, toggles, panels, and value lists; read structured data back out of outputs |
| Solve | Run the solution and surface runtime warnings and errors |
| Build in one shot | Construct and wire a whole graph, or mutate an existing one, in a single batched operation |

Quick start

Three steps: install the Rhino plugin, connect your AI client, then start the bridge in Rhino.

1. Install the Rhino plugin

In Rhino, open Tools → Package Manager, search for rhinomcp, and click Install. Restart Rhino.

2. Connect your AI client

Option A: ask your AI assistant to install it (recommended)

If you use an agentic assistant (Codex, Claude Code, Cursor, Cline, and the like), paste this prompt:

Please install https://github.com/jingcheng-chen/rhinomcp as a local MCP server named rhino.

Option B: Install the mcp server or manually edit the config yourself

Codex, in one command:

codex mcp add rhino --env RHINO_MCP_HOST=127.0.0.1 -- uvx rhinomcp

Claude Code, in one command:

claude mcp add rhino -- uvx rhinomcp

ChatGPT: use Codex for the local setup above. ChatGPT apps/MCP connectors currently connect
to remote MCP servers, not local stdio commands like uvx rhinomcp. If you want to build a
ChatGPT app around RhinoMCP, use ChatGPT developer mode with a remote or tunneled MCP endpoint.

You can also manually edit the config yourself:

{
  "mcpServers": {
    "rhino": {
      "command": "uvx",
      "args": ["rhinomcp"],
      "env": {
        "RHINO_MCP_HOST": "127.0.0.1"
      }
    }
  }
}

> [!IMPORTANT]
> The launcher uvx comes from uv. If you don't have it yet:
> macOS brew install uv · Windows powershell -c "irm https://astral.sh/uv/install.ps1 | iex"
>
> Run only one RhinoMCP server at a time (Codex, Claude, Cursor, etc. — not several at once).

<details>
<summary>Auto-restart the server with your AI client (optional)</summary>

To clean up a stale rhinomcp process each time your client launches:

macOS / Linux

{
  "mcpServers": {
    "rhino": {
      "command": "sh",
      "args": ["-c", "killall rhinomcp 2>/dev/null; uvx rhinomcp"]
    }
  }
}

Windows

{
  "mcpServers": {
    "rhino": {
      "command": "cmd",
      "args": ["/c", "taskkill /F /IM rhinomcp.exe 2>nul & uvx rhinomcp"]
    }
  }
}

</details>

3. Start the Rhino bridge

With Rhino open, type mcpstart in the command line. This starts the TCP bridge the server
connects to (mcpstop ends it). Run it once per Rhino session.

Usage

With the bridge running and your client connected, you'll see the RhinoMCP tools. From there, just
